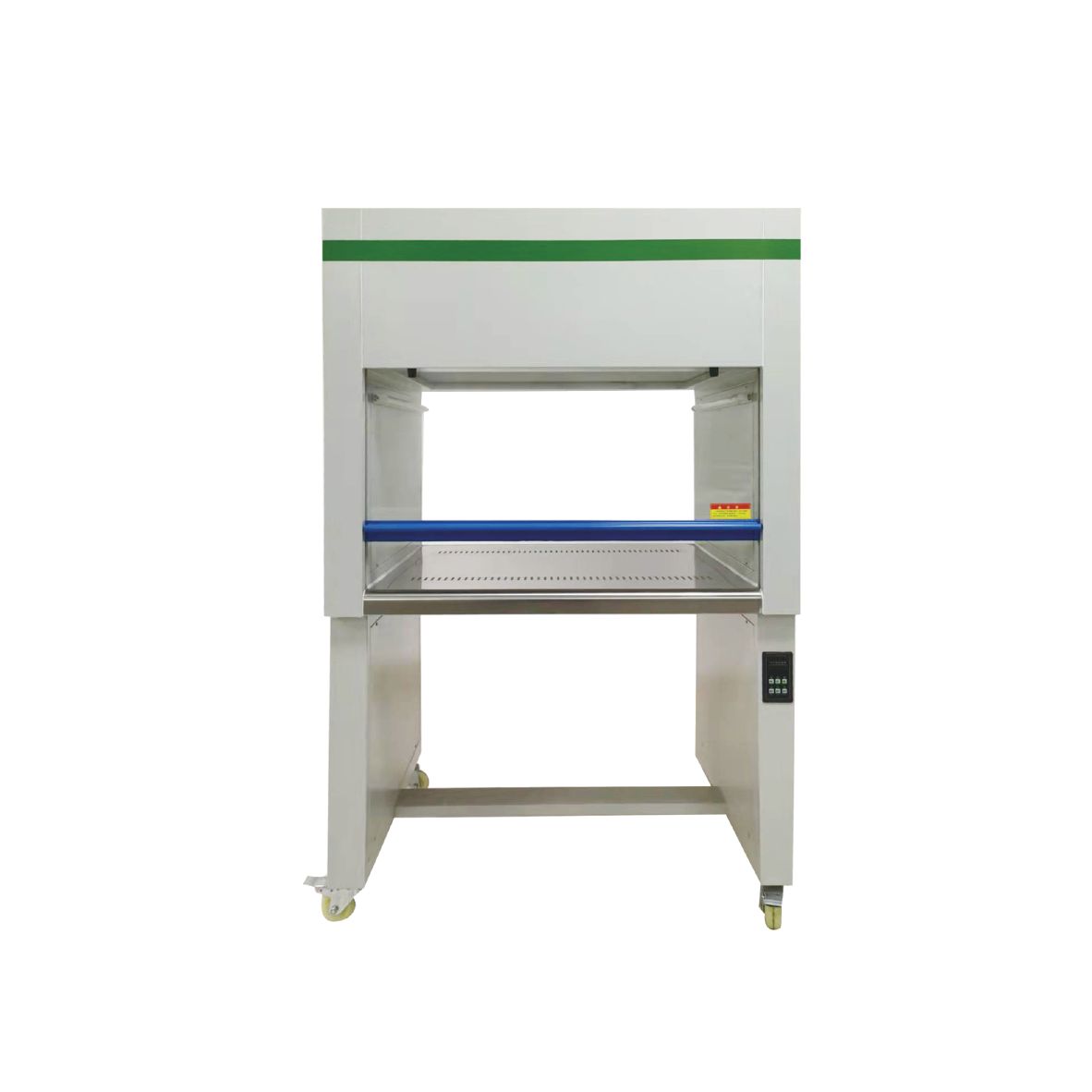

Vertical Laminar Flow Cabinet Clean Bench
  • Vertical Laminar Flow Cabinet Clean BenchVertical Laminar Flow Cabinet Clean Bench

Vertical Laminar Flow Cabinet Clean Bench

The Jinda Ultra-clean workbench (Vertical Laminar Flow Cabinet Clean Bench) is a box-type air box that can provide a local operating environment with a local dust-free, clean and sterile working environment level of 100 (ISO level 5). Purification equipment.You are welcomed to come to our factory to buy the Jinda latest selling, low price, and high-quality Ultra-clean workbench. We look forward to cooperating with you.

Send Inquiry

Product Description

Here are some key features and functions of Vertical Laminar Flow Cabinet Clean Bench:


Jinda Vertical Laminar Flow Cabinet Clean Bench from China factory is widely used in areas that require local purification, such as laboratories, biopharmaceuticals, optoelectronic industries, microelectronics, hard disk manufacturing and other fields, medicine and health, food, medical science experiments, optics, electronics, clean room experiments , cell culture, plant tissue culture inoculation and other scientific research and production departments that require a locally clean and sterile working environment; depending on the airflow mode of the workbench, its application fields are also different.

Product Categories

Ultra-clean workbench is mainly divided into two categories according to the air flow state, one is horizontal laminar flow and the other is vertical laminar flow. According to the operation structure, it is divided into two forms: unilateral operation and bilateral operation.
The conventional materials are mostly cold-rolled steel plates with electrostatic spraying, and the table tops are made of stainless steel. They can also be made of all stainless steel according to user needs.

type JD-CJ-1A JD-CJ-2A JD-QB-1A JD-QB-2A
Cleanliness level 100grade(US Federal 209E)
average wind speed 0.4m/s±20%(Adjustable)
Noise ≤65dB(A)
vibration half peak ≤3μm
illumination ≥300LX
power supply AC, single phase 220V/50Hz
Maximum power 0.4KW 0.8KW 0.4KW 0.8KW
Purification area size (width * depth * height mm) 850*500*620 1450*500*620 770*510*520 1270*510*520
Overall dimensions (width*depth*height mm) 900*720*1450 1500*720*1450 800*710*1500 1300*710*1500
Primary filter specifications and quantity 490*490*20*① 820*600*50*① 260*220*10*② 260*220*10*②
Specifications and quantities of high-efficiency filters without partitions 820*600*50*① 600*600*50*① 720*484*50*① 1220*484*50*①
Specifications and quantities of germicidal lamps/lighting lamps 14W*①pc/LED 9W*①pc 28W*①pc/LED 18W*①pc T58W*①pc/14W*①pc T514W*①pc/21W*①pc
Box material

It adopts a closed cold-rolled steel plate structure, and the entire work area is electrostatically sprayed.

The countertop is made of stainless steel.

It adopts galvanized square tube steel plate structure and is treated with electrostatic spraying as a whole. The work area

The countertop is made of stainless steel.

fan Single YYD-50*1, double YYD-50*2 (independent tap fan, independent motor winding)
controller High, medium and low speed adjustment, soft contact switch
Universal wheel High, medium and low speed adjustment, soft contact switch
Airflow direction Horizontal flow direction
windshield 8mm thickened glass, surrounded by blue aluminum alloy edges and beveled edges (square glass models can be customized).
Applicable number of people Single person single sided Double single sided Single person single sided Double single sided
