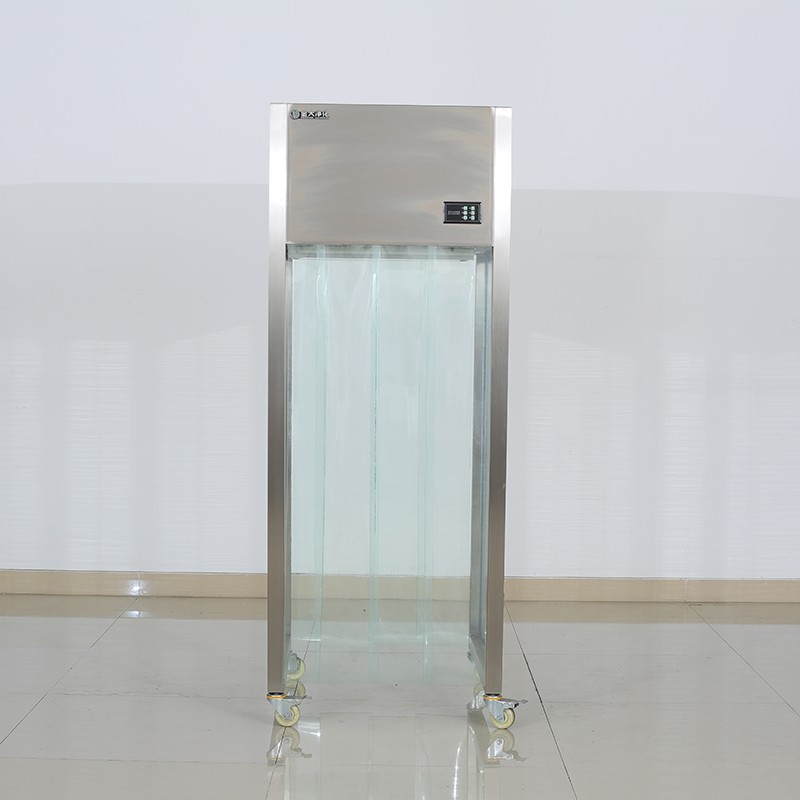

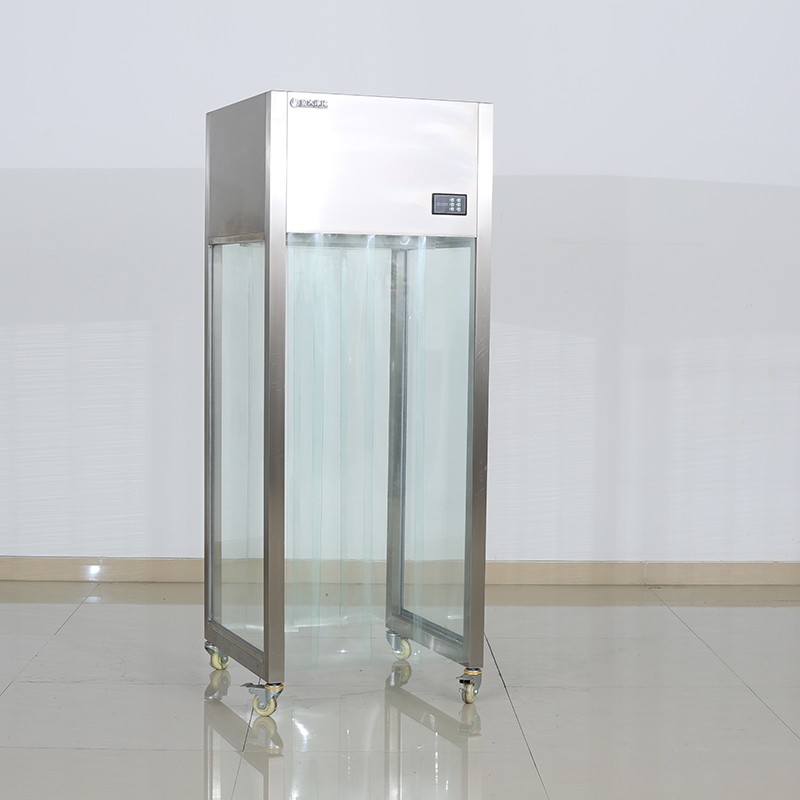

Stainless Steel Clean Sampling Vehicle

The Jinda high quality Stainless Steel Clean Sampling Vehicle’ structure is composed of stainless steel plates or spray-coated steel plates. It is controlled by a computer with light touch points. The fan has stepless speed regulation and the air volume can be adjusted at will. It is equipped with ultraviolet rays.

Sterilization lamp, specifications and dimensions can be customized according to customer requirements.

Normal working conditions: Temperature: 5℃~40℃;
Relative humidity: ≤80%;
Atmospheric pressure: 86~106KPa;
Appearance: The sampling car box is made of stainless steel or steel plate box, and the decorative curtain is smooth, vertical and free of damage;
Casters: flexible and reliable;
Lighting: The average illumination shall not be less than 300LX;
Purification levels: level 100, level 10,000, level 100,000;
Average wind speed: 0.4±20% (adjustable);
Noise: no more than 65dB;
Sedimentation bacteria: Sedimentation bacteria ≤ 10, three points were measured in total, and each point was measured three times;
Pressure difference: The pressure difference between the inside and outside of the car is greater than 10Pa. Inspection method: Use a micro-pressure meter to measure the pressure difference, measuring three points in total, and measuring each point three times;
Vibration: Within the wind speed standard range, the amplitude of the sampling vehicle frame in the X, Y, and Z directions is less than or equal to 3 μm.

Move the clean sampling vehicle to the place where sampling is required, fix the sampling vehicle (brake); turn on the power, turn on the power switch, and turn on the fan switch;
The fan starts working, adjust the voltage to an appropriate level (usually 220V), and after the clean sampling operation has been running for 15 minutes, put it into the sampling bucket;
After sampling, remove the sampling bucket, turn off the fan and power supply, unplug the power cord, and move the sampling truck to its original location.

The clean sampling vehicle is suitable for sampling raw and auxiliary materials of pharmaceutical preparations and sterile preparations. It is widely used for sampling raw and auxiliary materials in special occasions in medicine, preparations, electronics, precision instruments, meters, food and other industries.
