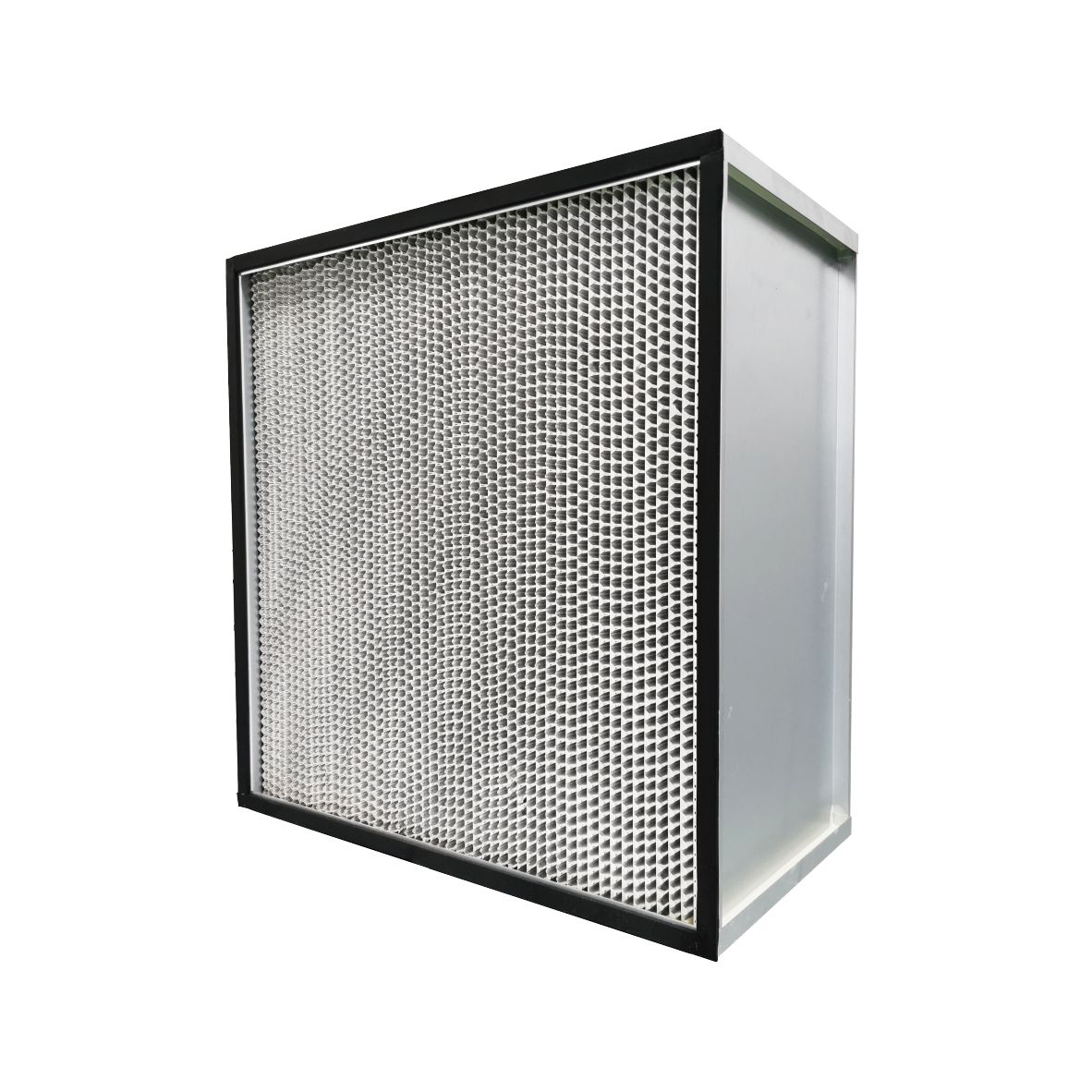

High Efficiency Filter with Diaphragm

The Jinda High Efficiency Filter with Diaphragm from China manufacturers is a type of air or fluid filtration system designed to provide exceptional efficiency in capturing and removing fine particles and contaminants from the air or liquid being processed. The addition of a diaphragm within the filter may be for various purposes, such as ensuring uniform airflow or pressure, enhancing filtration performance, or facilitating the filter's cleaning and maintenance.

Send Inquiry

Product Description

Key Features:

The use of High Efficiency Filter with Diaphragm from China factory can help improve the filter's performance by maintaining a consistent and controlled airflow or pressure gradient across the filter medium. This results in more effective particle capture and removal.
High-efficiency filters with diaphragms are commonly used in various industries, including pharmaceuticals, semiconductor manufacturing, cleanroom environments, healthcare, and food processing, where maintaining a high level of air or liquid purity is critical.

Features

High strength structural design
Jinda High-quality filter material fiber ensures that the filter maintains good filtration efficiency during its life cycle. Scan one by one according to EN1822

Performance parameters

Type: Pleated box filter with partitions
Filter material: water-resistant glass fiber filter paper
Frame material: galvanized/aluminum alloy/stainless steel
Dividers: Aluminum/paper foil
Sealant: Polyurethane
Filtration efficiency level: H11 (EN779), ≥95%@MPPS
H12(EN779), ≥99.5%@MPPS
H13(EN779)，≥99.95%@MPPS
H14(EN779)，≥99.995%@MPPS
Recommended final resistance: ≤500Pa
Continuous and stable operating temperature: no higher than 90℃

thickness		pleat pitch	initial resistance@0.8m/sPa
(inches)	(mm)	(mm)	H11	H12	H13	H14
		3	165	185	200	215
6	150	5	180	205	220	235
		8	200	225	250	260
		3	150	165	180	195
9	220	5	160	185	200	210
		8	180	200	225	235

Type	specification(W×H×D)	Rated air volume(m/h)	initial resistance(Pa)	final resistance(Pa)	efficiency@MPPS
GB 320series-H14	320×320×220	500	250	450	H14
GB 484series-H14	484×484×220	1000
GB 630series-H14	630×630×220	1500
GB 968series-H14	484×968×220	2000
